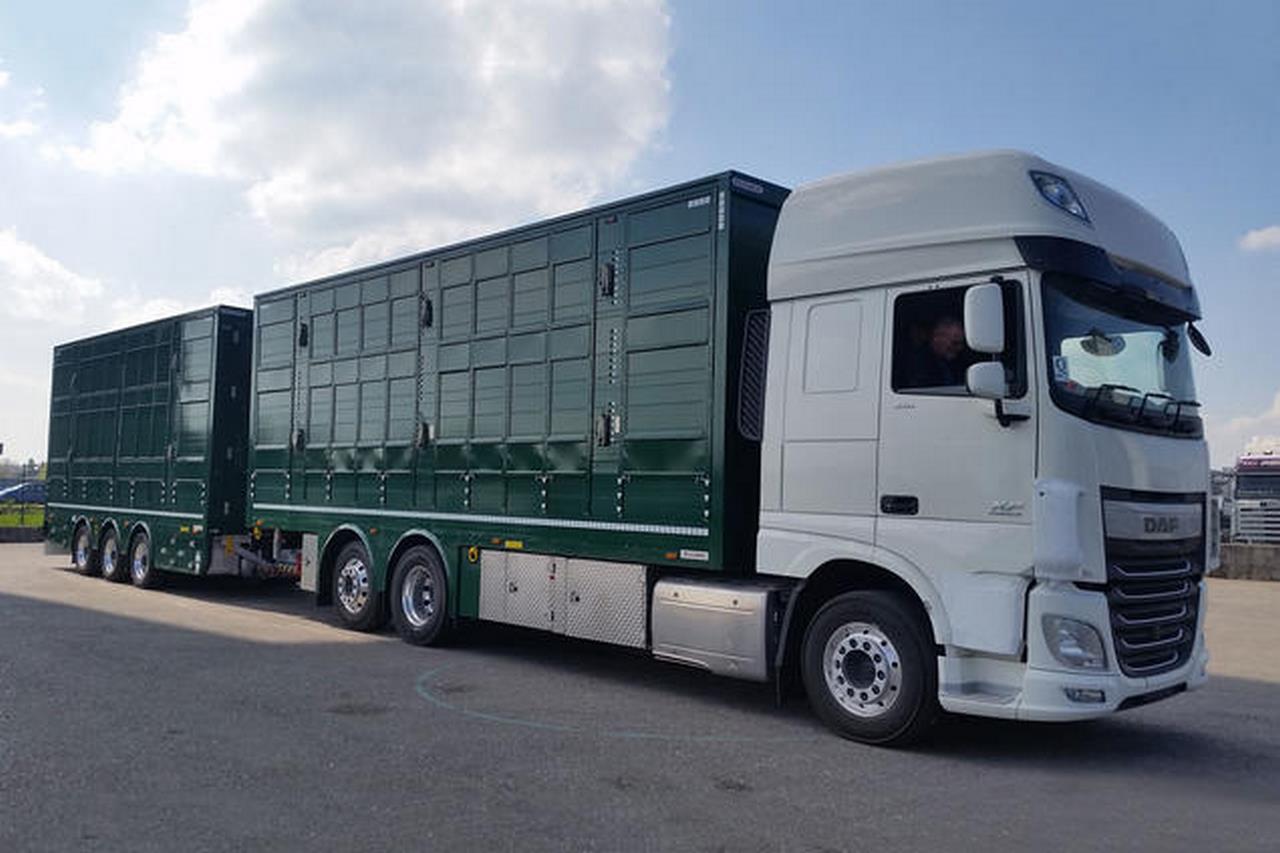

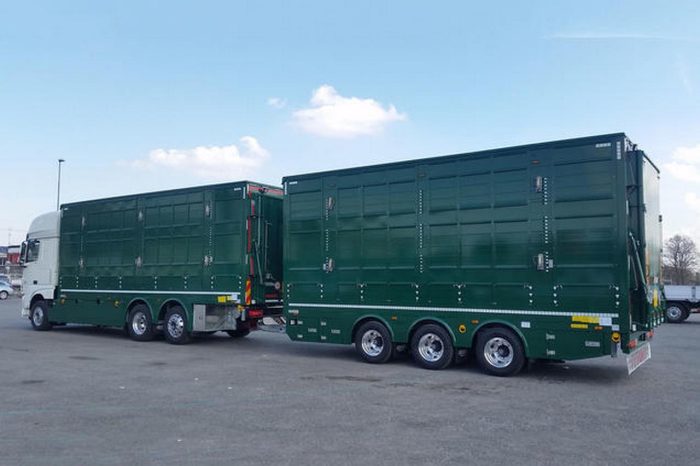

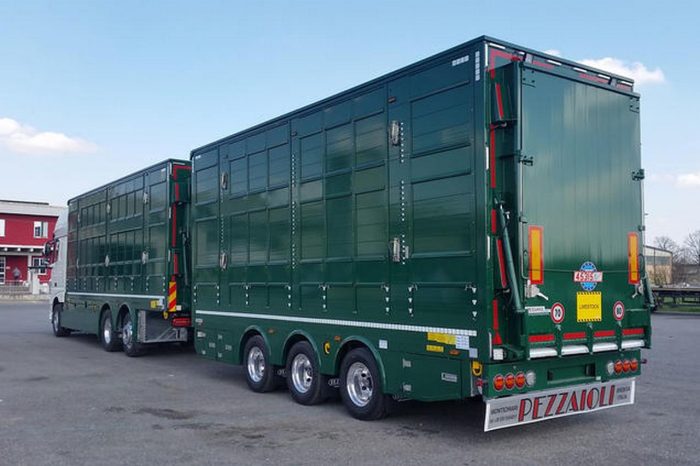

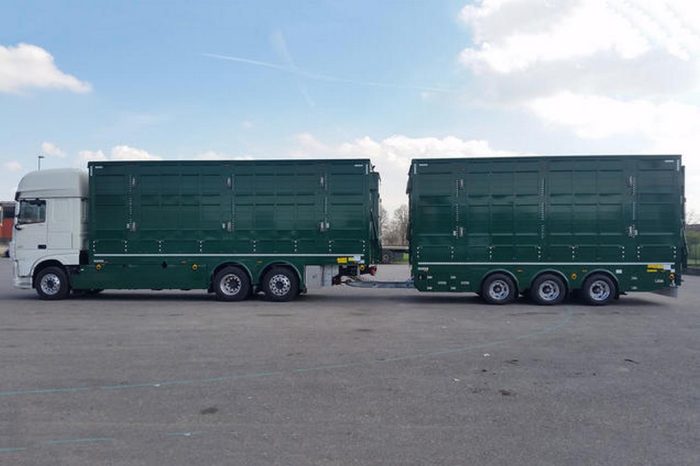

Description - BBA32 trailer for transporting animals
TECHNICAL CHARACTERISTICS
| Chassis: | Self-supporting anti-corrosion Aluminium structure |
| Axles: | twin 10000 Kg capacity |
| Brakes: | disk Ø 370 mm |
| Braking system: | pneumatic with 2 lines according to ECE regulations with 4 channel EBS and RSS |
| Parking Brakes: | spring brakes with pneumatic controls |
| Suspensions: | pneumatic type with electronic control and integrated with front and rear stabilization bar |
| Wheels: | disc 19.5 x 7.50 and M spigot |
| Tyres: | 265/70R19.5 or 255/60R19.5 twin |
| Tow bar: | extensible type 3x80 mm |
| Body: | box unit for livestock 2, 3, or 4 loading decks with hydraulic controls, raising lowering roof, side doors and back doors, wide tool boxes under the body, internal and external working lights |
| Electrohydraulic system: | completed with automatic safety device in accordance with Machines Directive and Work Safety Institute. (approval TUV n° 24 03 9761 002) |
| Loading ramp: | with hydraulic movement, anti-slip, with incorporated side guards and to work as barn doors if necessary |
| Partition gates: | in aluminium or zinc coated steel with over-flap for larger animals |
| Roof: | insulated type |
OPTIONALS
- Vents closed with aluminium flaps (+300 Kg)
- Automatic drinking system with water tank (+250 Kg);
- Drink-water heating
- GPS tracking system integrated with temperature and opening doors recording
